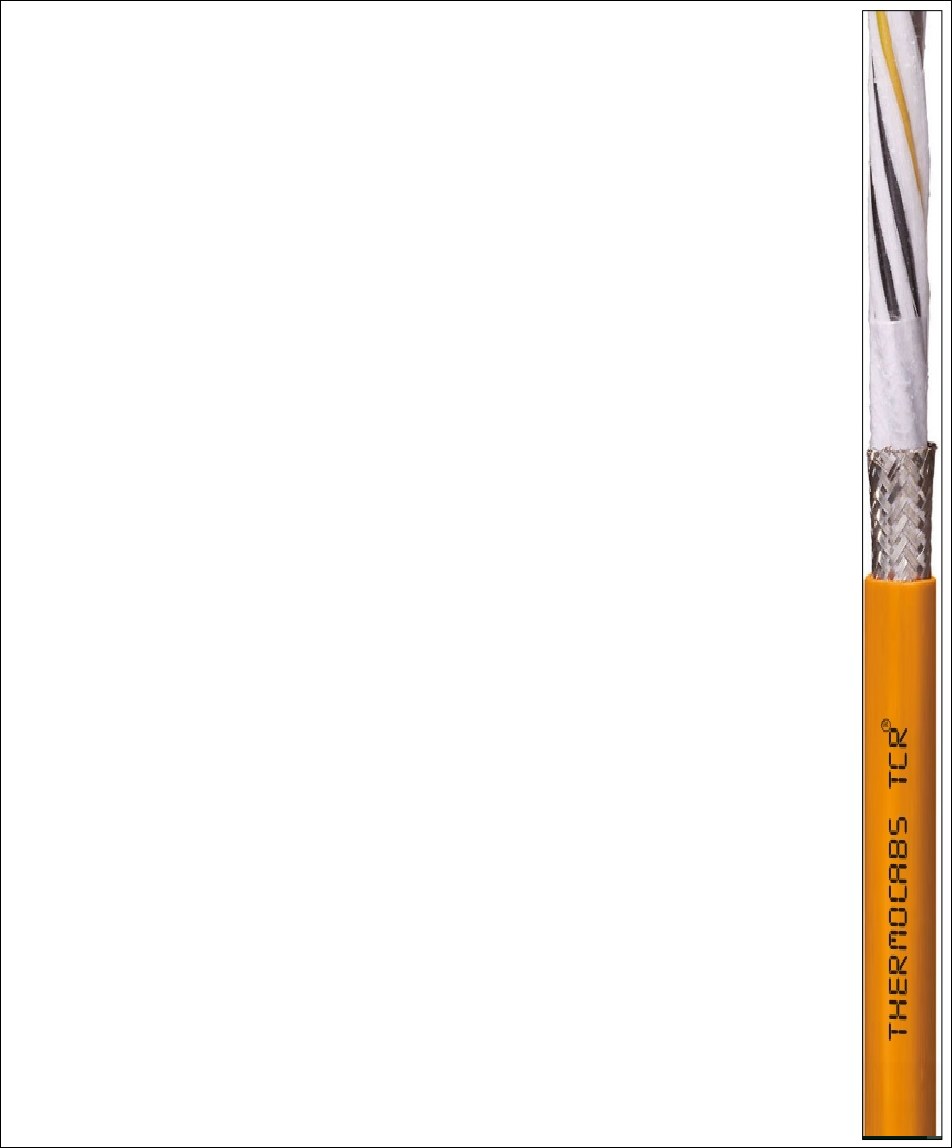

PVC Servo Cable 1

PVC Servo Cable 2

1

Conductor

stranded conductor in especially bending-resistant version consisting of Bare copper wires (Following EN 60228)

2

Core insulation

 Mechanically high-quality, especially low-capacitance TPE mixture

3

Core stranding

power cores with control pair elements stranded with elements for High tensile stresses

4

Core identification

Power cores :- Cores black with white numerals, one core green-yellow.

1. Core: U/ Ll/C/ L+                     2. Core: V/L2           3.Core: W/L3/ D/L-

1 Control pair: Core black with white numerals.

1. Control Core: 4                        2. Core: Control Core: 5

2 Control pair: Cores Black with white numerals.

1. Control Core: 5                        2. Control Core: 6

3. Control Core: 7                       4. Control Core: 8


5

Element  shield

bending-resistant braiding made of tinned copper wires

coverage approx. 55% linear approx. 80% optical

6

Intermediate Layer

Foil taping over the external layer.

7

Overall shield

Bending-resistant braiding made of tinned copper wires coverage approx. 55% linear Approx.80% optical

8

Outer jacket

Low adhesion oil- resistant mixture on the basis of PVC,adapted to suit the Requirements in energy chains*

Colour: pastel orange (Similar to RAL2003).

9

Bending radius

Moved minimum 10 x d

Fixed minimum 5 x d

10

Temperature

Moved +5°C to +70°C for use in energy chains with >

50.000 cycles

-5°C TO 70°C following DIN EN 60811 FIXED -20°c to +70°c

11

V max.

10m/s

12

Freely suspended a max.

50m/s2

13

Travel Distance

freely suspended travel distances and up to 100m for gliding applications,class 2

14

UV-resistant

Medium

15

Nominal voltage

600/1000v (following DIN VDE 0250)

16

Testing voltage

4000 V (following DINVDE 0281-2)

17

Oil

Oil-Resistance (Following DIN ENS0363-4-1), Class 4

18

Clean room

According to ISO Class-2 outer Jacket material complies with CF5.10.07 Tested by IPA According to stranded 14644-1

Typical application area:-

- For medium load requirements

- Light oil influence

- Indoor applications, must also outdoor once at temperature > 5 °c

- Freely   suspended  travel  distances  and  up  to 10m for gliding applications

- Wood/stone processing, packaging industry, supply system, handling, adjusting equipment

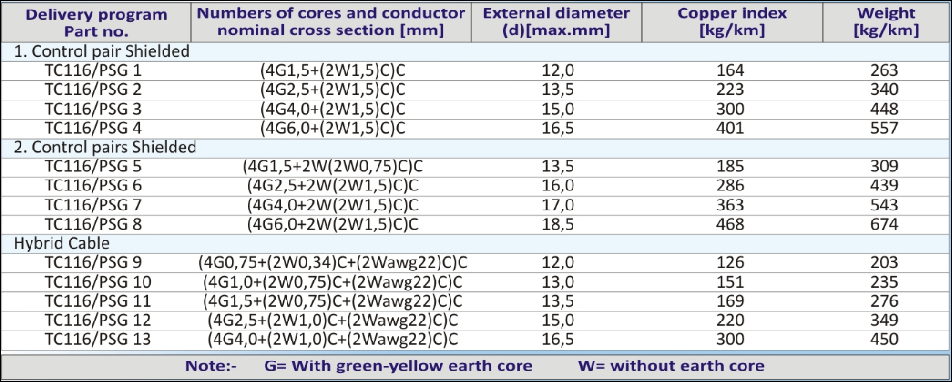

Technical Specification
