PUR Fibre Optic Cable Type - 1

TPE Fibre Optic Cable

1

Fibre  cables

50/125 µm, 62,5/125 µm special fixed wire elements with aramide strain relief

2

Core stranding

FOC core stranded with high-tensile aramide dampers with especially short pitch length.


3

Core identification

FOC- Cores :orange or blue, with black numerals


4

Overall shield

Extremely bending-resistant aramide braid for torsion protection


5

Outer jacket

low-adhesion  mixture on the basis of TPE especially abrasion-resistant and highly flexible, Adapted to suit the requirements in energy Chains.  Colour: jet black (Similar to RAL 9005)


6

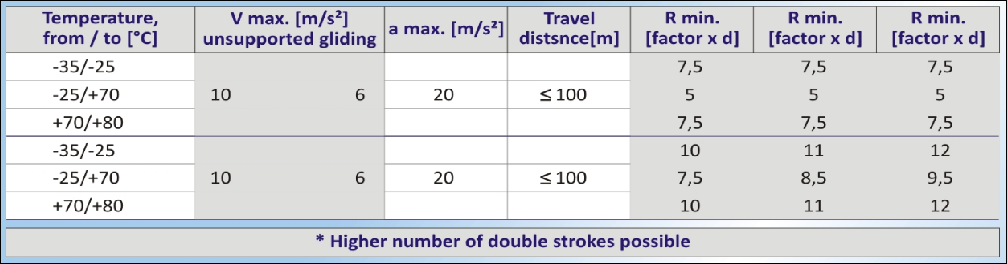

Bending radius

Moved minimum 5-7,5 x d  Fixed   minimum 5 x d


7

Temperature

moved -35°C to +80°C  Fixed -40°C to +80°c


8

V max.

lOm/s, 6m/s


9

Unsupported/ gliding a max

20m/s2

10

Travel Distance

Freely suspended travel distances and up to  Om for gliding applications, Class-4


11

UV €resistant

High


12

Oil

Oil-resistant  ( following  DIN  EN  60811-2-1)  biooil-resistant (following VDMA 24568 with Plantocut 8/ S-MB tested by DEA) Class-4


Typical application area:-

- For maximum load requirements at 5 x d

- Maximum EMC protection, with high transmission qualities in terms of glass-specific requirements

- Almost unlimited resistance to oil, also with bio-oils Indoor and outdoor applications

- Freely suspended travel distances and up to lOOm for gliding applications

- Storage and retrieval units for high-bay warehouses , machines units/ packaging machines, quick handling,    semiconductor insertion, refrigerating sector.

1

Fibre  cables

50/125 µm, 62,5/125 µm fibres in gel-filled hollow cores.

2

Stranding

Stranded GRP rods with integrated torsion protection braid in outer jacket over gel-filled Fibre sheath


3

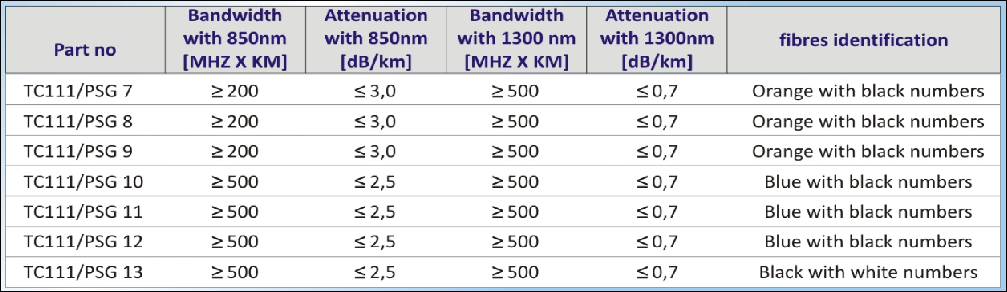

Identification

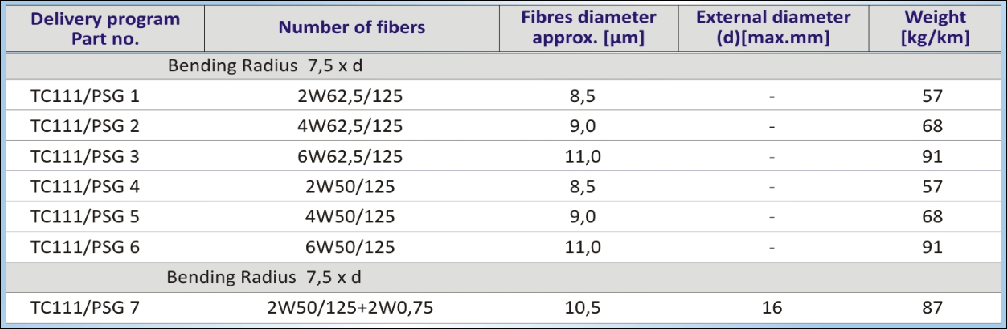

 fibres > schedule delivery program

4

Overall shield

Extremely bending-resistant aramide braid for torsion protection


5

Outer jacket

low-adhesion mixture on the basis of TPE especially abrasion-resistant and highly flexible, adapted to suit the requirements in energy Chains.

6

Colour

jet black (Similar to RAL 9005)


7

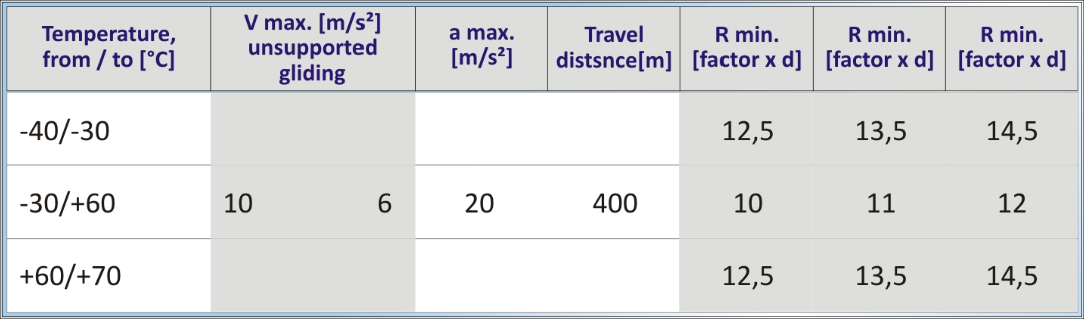

Bending radius

Moved minimum 10 x d


8

Temperature

moved -40°C to +70°C, Fixed -40°C to +70°C



9

V max.

lOm/s, 6m/s


10

Unsupported/ gliding a max

20m/s2

11

Travel Distance

Freely suspended travel distances and up to 400m and more for gliding applications, Class-5

12

UV Resistant

High


13

Oil

Oil-resistant  ( following  DIN  EN  60811-2-1)  biooil-resistant (following VDMA 24568 with Plantocut 8/ S-MB tested by DEA) Class-4


Typical application area:-

- For maximum load requirements

- Maximum EMC protection,,with high transmission qualities in terms of glass-specific requirements

- Almost unlimited resistance to oil ,also with bio-oils Indoor and outdoor applications

- Freely suspended   travel distances and up to 400m for   gliding applications

- Ship to shore, crane applications, conveyer technology, low­ temperature applications

View / Download

Technical Specification
