PVC Measuring System Cable

PUR Measuring System Cable

1

Conductor

very finely stranded special cores of particularly high flex design made of Tinned copper wires.

2

Core insulation

Mechanically high quality TPE mixture.

3

Core stranding

According to measuring system specification.

4

Core identification

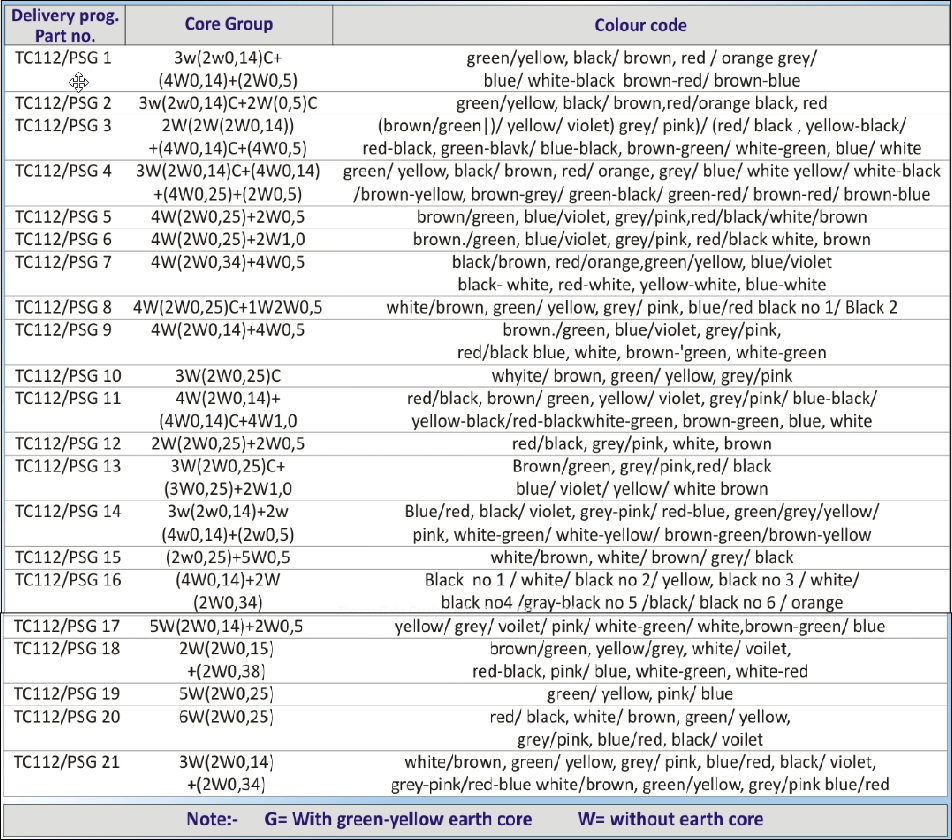

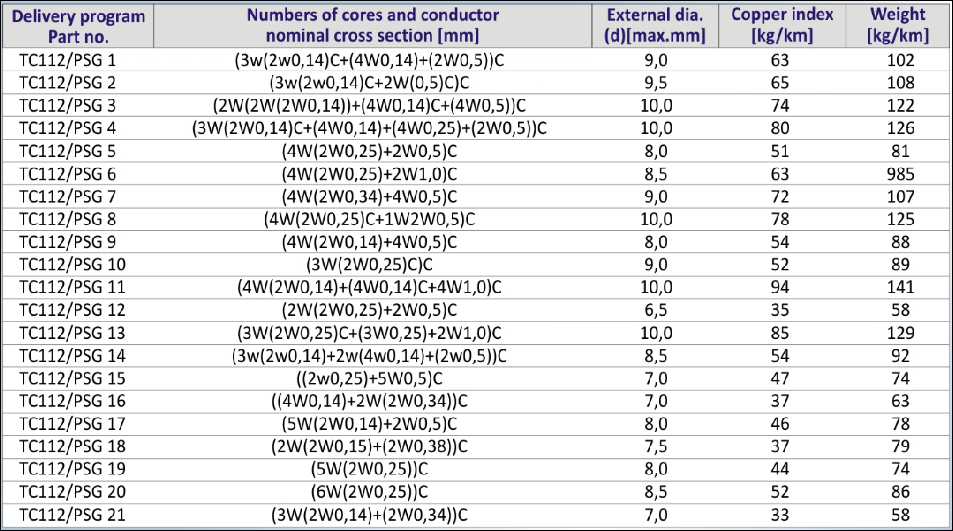

According  to  measuring system  specification.  >   Schedule delivery program

5

Element  shield

extremely  bending-resistant,  tinned  copper  cover coverage approx. 90% optical

6

Element jacket

TPE mixture adapted to suit the requirement energy chains over pair shield.

7

Overall shield

Extremely bending - resistance braiding made of tinned copper wires coverage approx 70% linear, approx, 90% optical.

8

Outer jacket

Low adhesion , oil-res istance mixture on the basis of PVC,adapted to suit the Requirements in energy chains*(Following DIN VDE 0281)

Colour: Silver gray( Similar to RAL 7001)

Colour: Yellow Green (Similar to RAL 6018)

9

Bending radius

Moved minimum 10 x d Fixed   minimum 5 x d

10

Temperature

moved +S°C to +70°C for use in energy chain with > 50.000 cycles -s0c to +7o0c following DIN EN 60811 FIXED -20°c to 70°c

11

V max.

5m/s2

12

Unsupported/ gliding a max

30m/s2

13

Travel Distance

freely suspended travel distances and up to lOm for gliding applications,class 2

14

Nominal voltage

50V

15

Testing voltage

500V

16

Oil

Oil-Resistance (Following DIN EN 50363-4-1), Class 2.

17

Clean room

According to ISO Class-2 outer jacket material complies with CFS.10.07, tested by IPA According to stranded 14644-1

Typical application area:-

- For medium load requirements Light oil influence

- Preferably indoor applications, must also outdoor once at temperature > 5 °c

- Freely   suspended  travel  distances  and  up  to Om  for   gliding applications

- Storage and retrieval units for high-bay warehouse, machining units/ packaging machines,

   handling,indoor cranes, wood I stone processing


View / Download

Technical Specification
