1

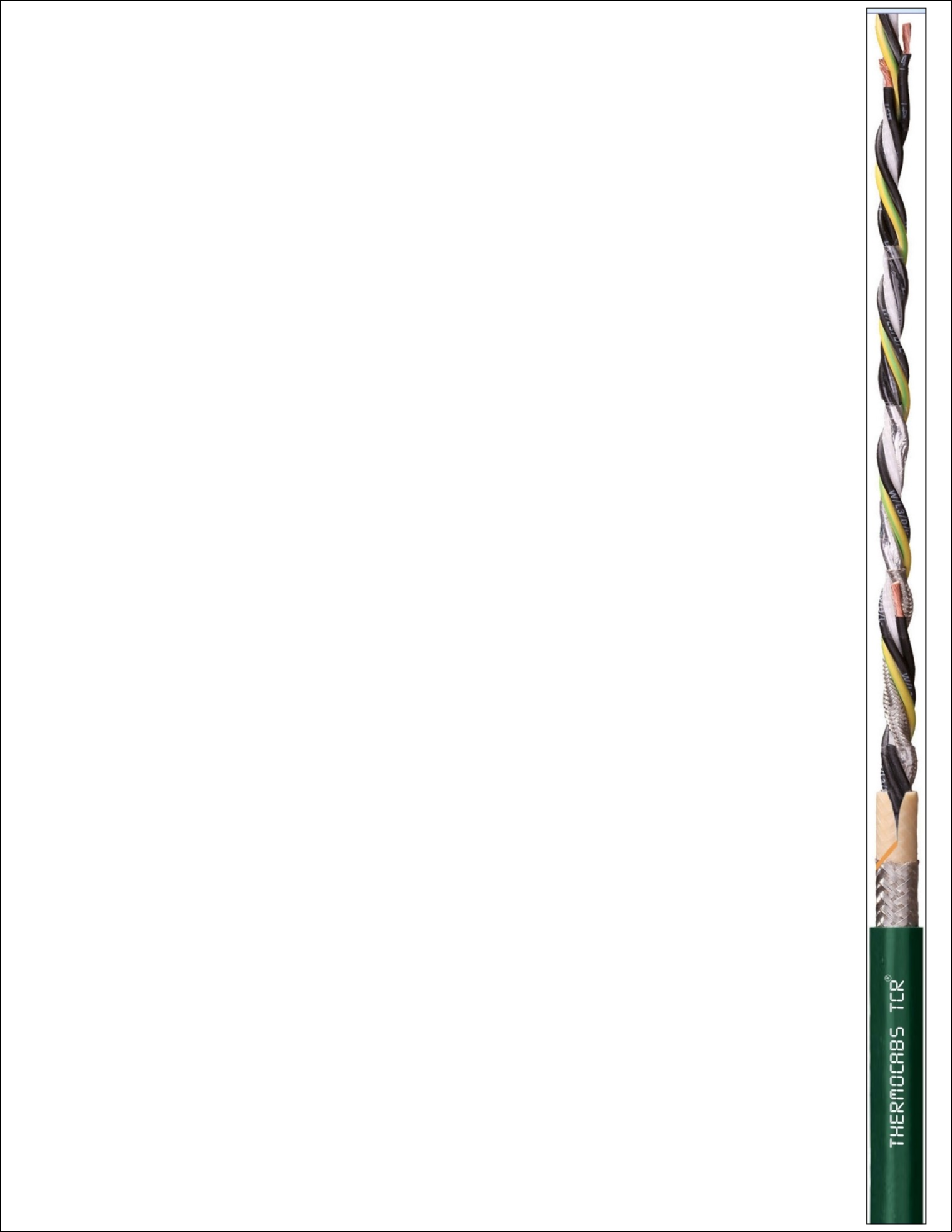

Conductor

stranded conductor in especially bending-resistant version consisting of bare copper wires (Following EN 60228)

2

Core insulation

Mechanically high-quality, especially low-capacitance TPE mixture

3

Core stranding

power cores with control pair elements stranded with elements for High tensile stresses

4

Core identification

Power cores :- Cores black with white numerals, one core green-yellow.

1. Core: U/ Ll/C/ L+                     2. Core: V/L2           3.Core: W/L3/ D/L-

1 Control pair: Core black with white numerals.

1. Control Core: 4                        2. Core: Control Core: 5

2 Control pair: Cores Black with white numerals.

1. Control Core: 5                        2. Control Core: 6

3. Control Core: 7                       4. Control Core: 8

Star Squad: Yellow, black, red, white

5

Element  shield

Extremely bending-resistant braiding made of tinned copper wires coverage approx. 70% linear Approx. 90% optical

6

Inner jacket

PVC mixture adapted to suit the requirements in energy chain.

7

Overall shield

Extremely bending-resistant braiding made of tinned copper wires coverage approx.  70% linear Approx. 90% optical

8

Outer jacket

Low adhesion oil- resistant mixture on the basis of PVC, adapted to suit the Requirements in energy chains* Colour: Moss green (Similar to RAL 6005).

9

Bending radius

 Moved minimum 7,5 x d

Fixed minimum 4 x d

10

Temperature

Moved +5°C to +70°C for use in energy chains with >

50.000 cycles

-5°C TO 70°C following DIN EN 60811 FIXED -20°c to +70°c

11

V max.

10m/s, 5m/s

12

Freely suspended a max.

80m/s2

13

Travel Distance

freely suspended travel distances and up to 100m for gliding applications, class 4

14

UV-resistant

Medium

15

Nominal voltage

600/1000v (following DIN VDE 0250)

16

Testing voltage

4000 V (following DINVDE 0281-2)

17

Oil

Oil-Resistance (Following DIN ENS0363-4-1), Class 4

18

Clean room

According to ISO Class-2 outer Jacket material complies with CF5.10.07 Tested by IPA According to stranded 14644-1

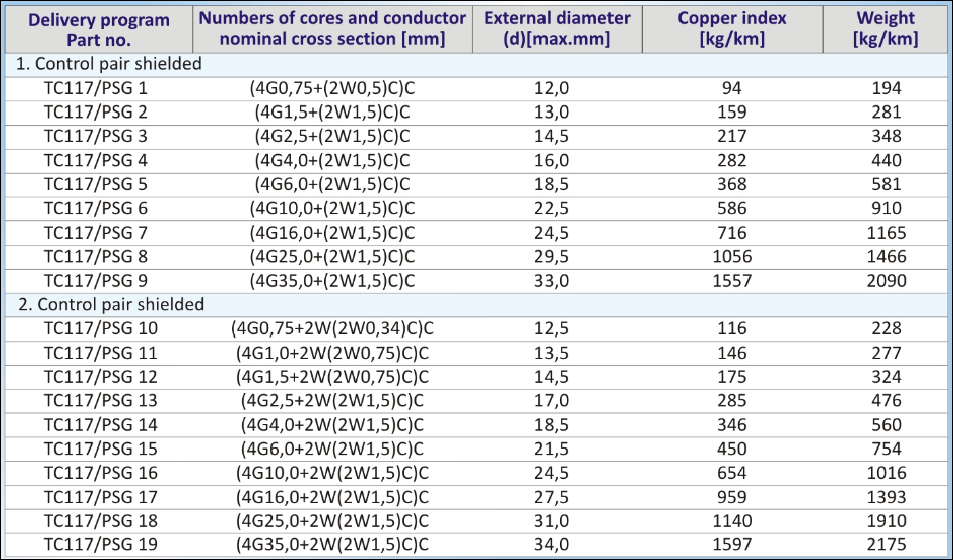

Typical application area:-

- For high load requirements

- Light oil influence

- Preferably indoor applications, but also outdoor once at temperature > 5 °c

- Freely suspended travel distances and up to 10m for gliding applications

- Storage and retrieval units for high-bay warehouses, machining units/packaging machines, Quick handling,   indoor cranes.
