1

Conductor

<10mm2:  Stranded conductor in especially bending -resistance version consisting of bare copper Wires (following EN60228)

≥10mm2 : conductor cable consisting of pre-leads

2

Core Insulation

 Mechanically high-quality, especially low-capacitance TPE mixture.

3

Core Stranding

Core Stranded in short pitch lengths over a center element for high tensile stresses.

4

Core Identification

 Cores Black with white numerals, one core green­ yellow.

1. Core: U/Ll/C/L+        2. Core: V/L2

3. Core: W/L3/D/L-           4. Core: 4/N

5

Inner jacket

PVC mixture adapted to suit the requirements in energy chains.

6

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage

Approx 70% linear, approx. 90% optical.

7

Outer jacket

Low adhesion oil- resistant mixture on the basis of PVC, adapted to suit

The Requirements in energy chains*

Colour :jet black (Similar to RAL 9005).

8

CFRIP

Strip Cables 50% faster! The tear strip in the outer jacket

9

Bending radius

Moved minimum 7,5 x d

Fixed minimum   4 x d

10

Temperature

Moved -5°C to +70°C for use in energy chains. With

>S0.000 cycles  -50c to +70°C following DIN EN 60811 Fixed -20°c to +70°c

11

V max.

 10m/s, 5m/s

12

Unsupported/ gliding a max

 80m/s2

13

Travel Distance

 Freely suspended travel distances and up to 100m for gliding applications, class 4

15

UV resistant

Medium

16

Nominal Voltage

600/1000V (Following DIN VDE 0250)

17

Testing Voltage

4000 V (Following DIN VDE 0281-2)

18

Oil

Oil-resistant ( Following DIN EN S0363-4-1) Class-2

19

Clean Room

According to ISO Class-2 outer jacket material complies with CFS.10.07 Tested by IPA According to stranded 14644-1

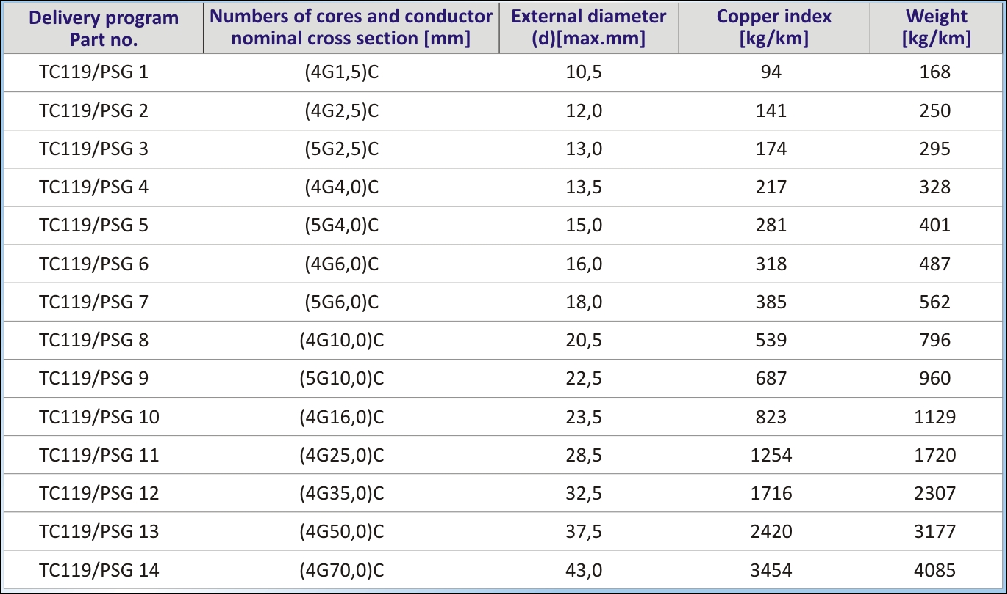

Typical application area:-

- For high load requirements Light oil influence

- Preferably Indoor applications but also outdoor ones at temperature > 5 •c

- Freely suspended travel distances and up to 10m for gliding applications

- Storage and retrieval units for high-bay warehouses, machining units/ packaging machines, Quick handling,  indoor  cranes.
