Home / Products / Twisted Cable Type - 1

1

Conductor

Stranded conductor in especially bending-resistant version consisting of bare Copper wires.

2

Core Insulation

Mechanically high-quality TPE mixture.

3

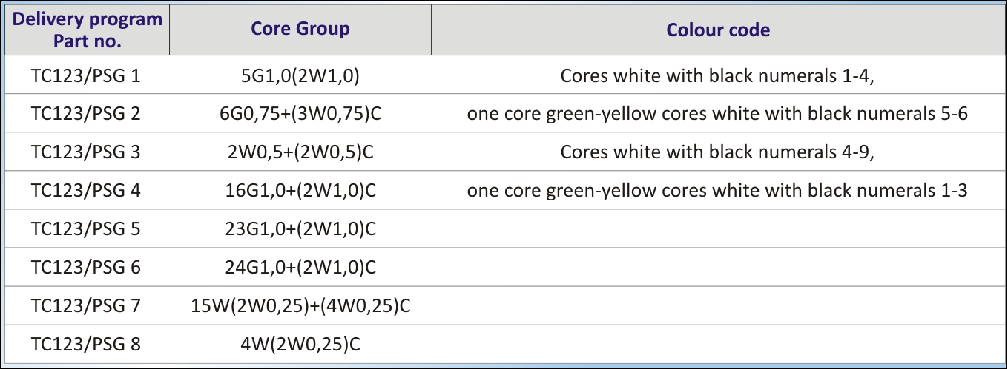

Core Identification

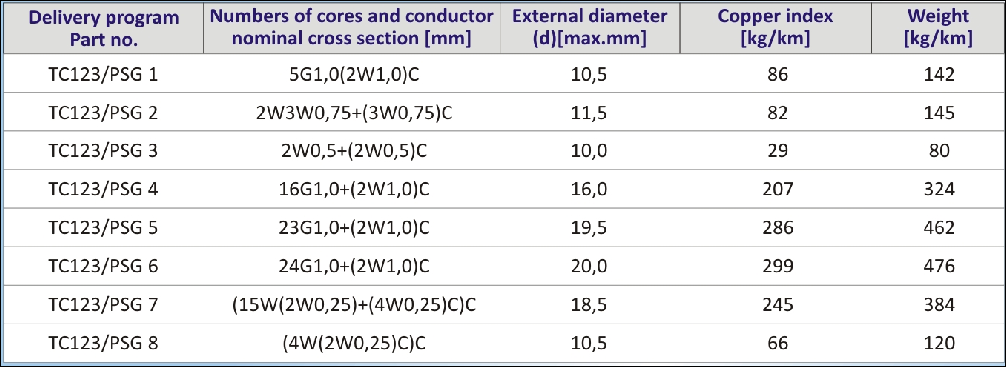

> Schedule delivery program

4

Element shield

Extremely torsion resistant tinned braided copper Shield. Coverage approx. 85% optical

5

Outer jacket

Low-adhesion, halogen-free, high abrasion-resistant mixture on the basis of PUR adapted to suit the requirement in energy chains (following DIN VDE 0282)

Colour : steel blue( similar to RAL 5011)

6

Bending radius

Twistable      minimum 10 x d

Moved        minimum 7 x d

Fixed              minimum 5 x d

7

Temperature

Twistable   -25'C to +80'C

Fixed         -40'C to +80'C

8

V max. Twisted

180'/s

9

A max twisted travel distance

For twistable applications, but also for freely suspended Travel distances and up to 100m for gliding applications, class6.


10

Torsion

±180', with 1 m cable length

11

UV Resistant

High

12

Nominal Voltage:

300/500V (Following DIN VDE 0245)

13

Testing Voltage

 2000v (following DIN VDE 0281-2)

14

Oil

Oil resistant ( following DIN EN 50363-10-2), CLASS 3

15

Clean Room:-

According to ISO Class-1. Outer jacket material complies with CF27.07.05.02.0l.D, tested by IPA according to standard 14644-1

Typical application area:-

- For maximum load requirements

- Almost unlimited resistance to oil

- Indoor and outdoor applications, UV-resistant

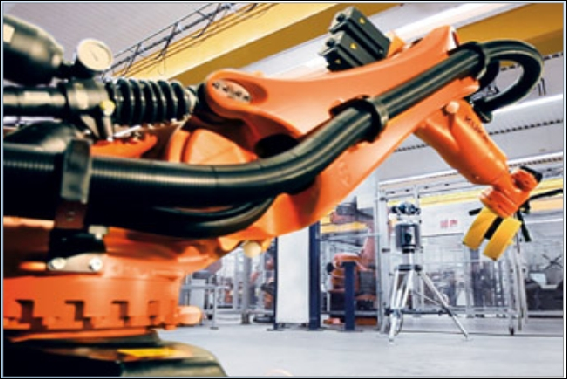

- Especially for robots and movements in the 3D range

- Robots, handling, spindle drives
