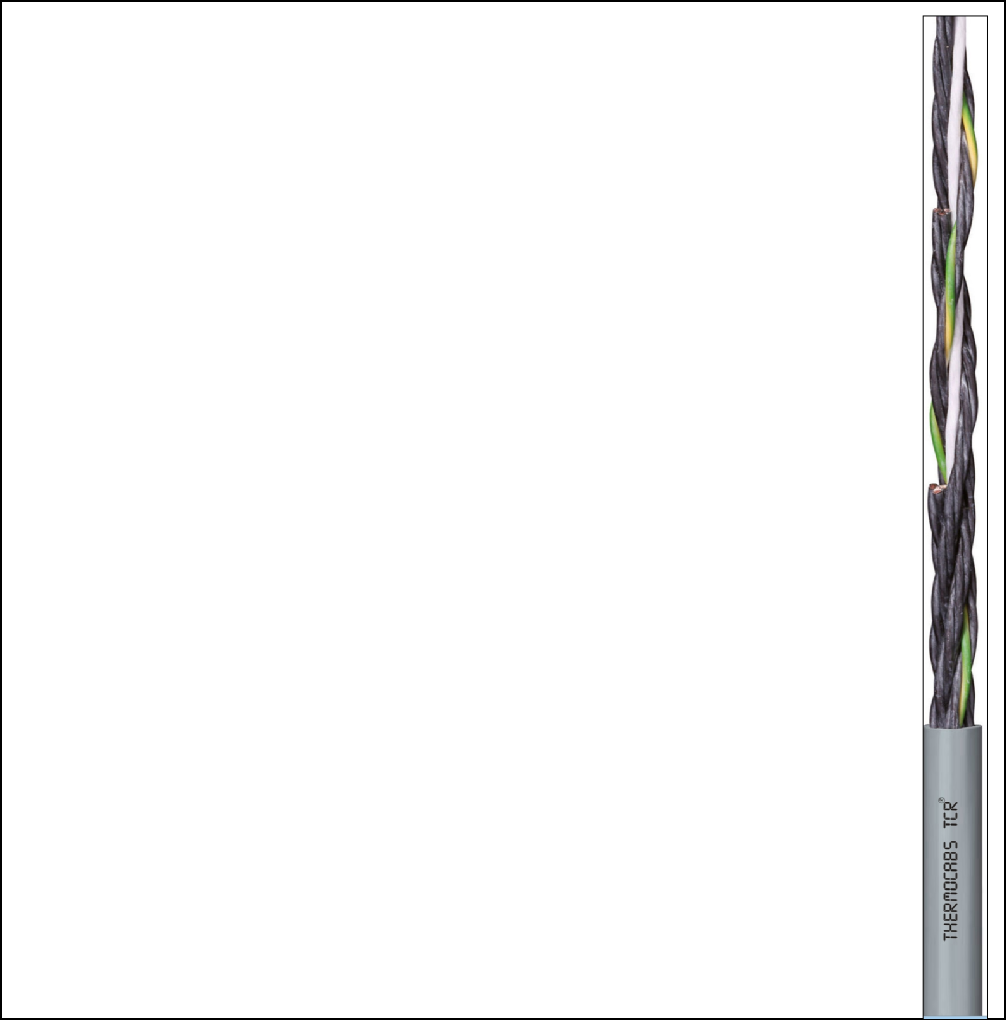

1

Conductor

Stranded conductor in especially bending-resistant version consisting of bare Copper wires.

2

Core Insulation

Mechanically high-quality TPE mixture.

3

Core Stranding

Numbers of cores < 12: Cores stranded in a layer with short pitch length.

Number of courses ≤ 12: Cores combined in bundles and stranded together around

A center for high tensile stresses with adapted, short pitch lengths and pitch directions, Especially / low­ torsion structure.

4

Core Identification

Cores < 0.5 mm2    Colour code in accordance with DIN 47100

Cores ≥ 0.5 mm2:Cores black with white numerals, one core green-yellow.

CF77.UL.03.04.INI:- Brown, blue, black, white

5

Element shield

Extremely torsion resistant tinned braided copper Shield. Coverage approx. 85% optical

6

Outer jacket

Low-adhesion, halogen-free, high abrasion-resistant mixture on the basis of PUR adapted to suit the requirement in energy chains (following DIN VDE 0282)

Colour : steel blue( similar to RAL 5011)

7

Bending radius

Twistable      minimum 10 x d

Moved        minimum 7 x d

Fixed              minimum 5 x d

8

Temperature

Twistable   -25'C to +80'C

Fixed         -40'C to +80'C

9

V max. Twisted

180'/s

10

Travel distance

For twistable applications, but also for freely suspended travel distances and up to 100m for gilding applications, class 6.

11

Torsion

±180', with 1 m cable length

12

UV Resistant

Medium

13

Nominal Voltage:

Number of cores <12: 300/500V

Number of cores <12(0,25-0,34): 300/300V

Number of cores <12: 300/300 V (Following DIN VDE 0245)

14

Testing Voltage

 2000v (following DIN VDE 0281-2)

15

Oil

Oil-resistant ( following DIN EN 50363-10-2), CLASS 3

16

Clean Room:-

According to ISO Class-1. Outer jacket material complies with CF77.UL.05.05.12.D, tested by IPA according to standard 14644-1

Typical application area:-

- For maximum load requirements

- Almost unlimited resistance to oil

- Indoor and outdoor applications, SUN radiation

- Especially for robots and movements in the 3D range

- Robots, handling, spindle drives
