PVC BUS Cable

1

Conductor

Stranded Conductor in especially bending-resistant version Consisting of bare copper wires ( IS 8130 & EN60228)

2

Core Insulation

According to bus specification.

3

Core stranding

According to bus specification

4

Core identification

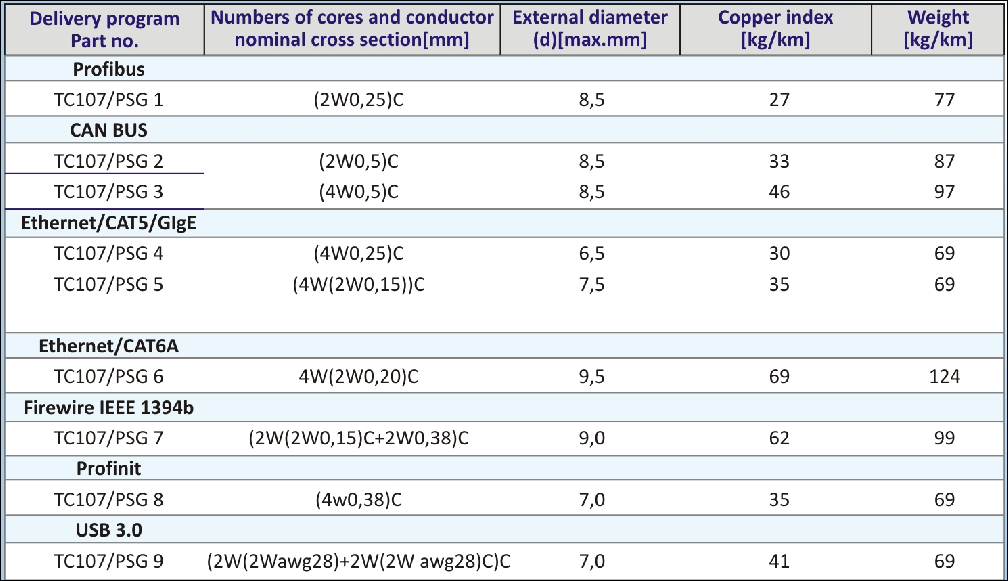

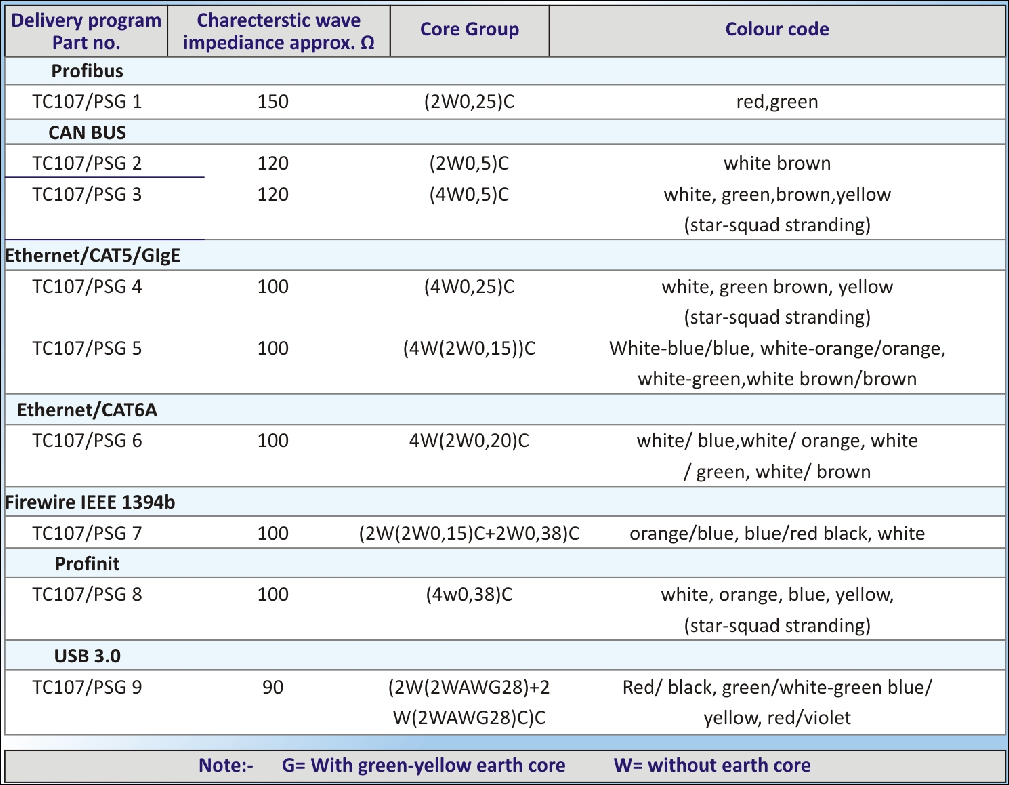

According to bus specification > Schedule Delivery program.


5

Overall Shield

Bending resistance braiding made of tinned copper wires Coverage approx. 55% linear Approx 80% optical

6

Outer jacket

Low adhesion, oil-resistant mixture on the basis of PVC , adapted to suit the requirements

In energy chains. Grade of PVC ( HR grade 85 deg.c )


7

Bending radius

Moved minimum 12.5 x d   Fixed minimum   7.5 x d

8

Temperature

Moved +5°C to +70°C for use

          -5°C to +70°C following DIN EN 60811

9

V max.

3m/s, 2m/s

10

Unsupported/ gliding a max

 30m/s2

11

Travel Distance

 Freely suspended travel distances and up to 10m for gliding applications, class 2

12

UV Resistant

Medium

13

Nominal Voltage

50 V

14

Testing Voltage

500 V

15

Oil

Oil-resistant ( Following DIN EN 50363-4-1) Class-2

16

Flame Retardant

According to IEC 60332-1-2, CEI 20-35, FT1, VW1

Typical application area:-

- For medium load requirements

- Light oil influence

- preferably indoor applications, but also outdoor ones at temperatures >5·c

- Freely suspended travel distances and up to 20m for gliding applications

- Bus connection cable for machining units/ machine tools, handling, indoor cranes

Technical Specification
